Our expanding selection of low, medium, and high-wattage holmium laser systems feature the latest laser technology from Quanta System. Quanta’s latest technology, Magneto, is a first-of-its-kind technology available in new versions of the Litho 100 W and Litho 150 W systems. All Quanta holmium laser systems with a wattage of 60 W and above come standard with a trio of innovative technologies, including the Virtual Basket® pulse modulation mode. The low-watt experience has evolved as well with the launch of the Litho EVO, a 35 W system that features the premium technologies Vapor Tunnel® and MasterPULSE.
Get a closer look at the bubble dynamics of Quanta’s innovative pulse technologies.
Please submit the required fields to be connected with your local Cook representative. This form is intended for US-based physicians only.
By clicking Submit, you agree to the terms and conditions for collecting and processing your personal information, as included in our customer data privacy notice.
The double pulse modulation used with the Virtual Basket® emission mode allows limited stone movements and fine lithotripsy. When you use the Virtual Basket® mode, a first pulse generates the vapor bubble and a second pulse, emitted from the same fiber, propagates through the bubble to irradiate the target.
Consisting of a single specific long pulse, the Vapor Tunnel® emission mode allows limited retropulsion while dusting stones. It is designed to use minimum peak power in accordance with the selected output settings. This long bubble represents a direct connection between fiber tip and stone.

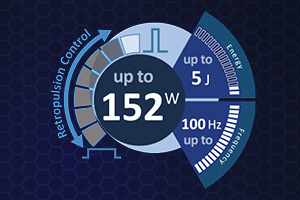

Experience an intuitive and more personalized way to adjust the laser settings, simply based on your visual feedback. Use MasterPULSE to reduce retropulsion and fine tune tissue cutting. Obtain the desired effect quickly, without the time needed to make standard adjustments to energy and frequency parameters. MasterPULSE has seven levels of pulse width adjustment for increased flexibility.
Magneto gives users the option to extend the pulse width to as long as 2000 μs, thus reducing the peak power to as low as 500 W. This allows high-power holmium laser systems to also exhibit the lower peak power, reduced retropulsion, and fine dusting only previously achieved with a Thulium Fiber Laser (TFL)
As stipulated in our partnership agreement, Cook Medical is only selling Quanta System lasers and fibers in the United States and the following European countries: Austria, France, Germany, Ireland, Switzerland, and the United Kingdom.
Virtual Basket, Vapor Tunnel, and Fiber Dust are registered trademarks of Quanta System.
